Glass Assembly
Custom glass assembly support for cover glass, touch panels, display modules, frames and equipment housings, with alignment, adhesive bonding, cleanliness and finished-component inspection controlled around the customer drawing.
What Does Glass Assembly Include?

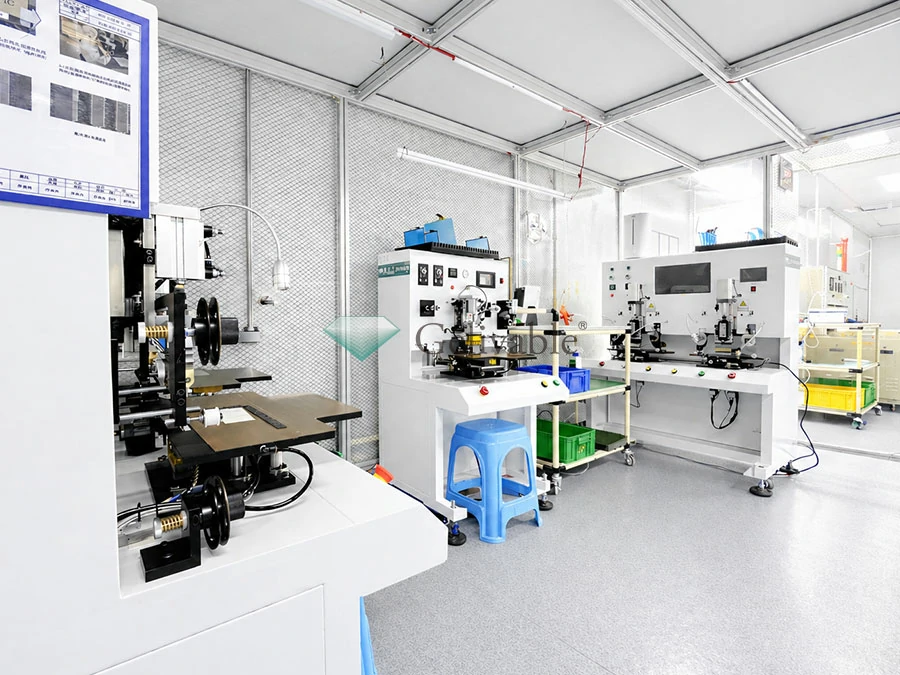

Glass assembly integrates the finished glass with another component such as a touch sensor, display module, frame, bezel or equipment housing. Depending on the project, the assembly may use double-sided adhesive, adhesive film or another approved bonding method.
The main purpose is not simply to attach two parts. A repeatable assembly process must control part fit, alignment, bonding area, cleanliness, gap, visible appearance and any functional relationship between the glass, touch system and display.
GelivableGlass current website describes assembly and adhesive bonding support for cover glass integration with displays, touch panels and equipment components. For projected-capacitive touch systems, the complete glass thickness, adhesive stack, sensor and controller should be validated together.
Optical bonding with liquid optical adhesive is a separate specialized process and should be clearly specified if the project requires it; this page focuses on mechanical and adhesive-supported glass component assembly.
Get a quote
Assembly Capability
Why Use Integrated Glass Assembly?
Supplying a verified glass subassembly can reduce downstream handling and help connect glass fabrication directly to the customer's installation requirements.
Controlled Component Alignment
Glass, display windows, touch sensors, frames and housings can be aligned against drawing datums and visible-area requirements.
Integrated Fabrication & Bonding
Machining, printing, coating, tape application and assembly can be planned around the final stack instead of being managed as unrelated processes.
Clean Visible-Area Control
Assembly procedures can focus on keeping display windows and visible surfaces free from avoidable dust, fingerprints and adhesive intrusion.
Fit & Gap Verification
Part dimensions, recesses, adhesive thickness and mating structures can be reviewed together to reduce interference or inconsistent assembly gaps.
Touch-System Consideration
For capacitive touch products, cover-glass thickness, bonding structure and the sensor/controller combination should be validated as a complete touch system.
Finished Subassembly Inspection
Visual, alignment and specified functional checks can be completed after assembly before the component is packed for shipment.
Key Assembly Requirements
Glass Assembly Parameters to Confirm
The assembly drawing should define the relationship between the glass and every mating component. Clear datums and visible-area dimensions are more useful than relying on nominal part sizes alone.
| Parameter | Processing Consideration |
|---|---|
| Assembly Components | Identify the glass, touch sensor, display, frame, bezel, housing or other parts that GelivableGlass is expected to integrate. |
| Alignment Datum | Define which edges, holes, printed features or mechanical references control final part position. |
| Bonding Method | Specify double-sided tape, adhesive film, approved liquid adhesive or other method. Optical bonding should be identified separately when required. |
| Bonding Area | Show adhesive frames, no-bond zones, display windows, sensor areas and edge clearances on the drawing. |
| Assembly Gap | Tape or adhesive thickness can influence the final gap between glass and the mating component and should be included in stack-up review. |
| Cleanliness Requirement | Visible display and optical areas should have a clearly defined cleanliness and cosmetic acceptance standard. |
| Touch / Display Function | For touch and display assemblies, final electrical or optical validation requirements should be defined according to the customer system. |
| Packaging Direction | Protective film, release liners, orientation labels and component support should match the customer's unpacking and installation process. |
What to Send for Assembly Review
Glass Drawing
Assembly Drawing
BOM
Mating Parts
Alignment Datum
Bonding Method
Adhesive Part No.
Gap Requirement
Visible Area
Cleanliness
Functional Test
Packaging
If customer-supplied components are required for assembly, supply responsibility, incoming inspection standard and allowable cosmetic condition should be agreed before pilot production.
Assembly Process
From Incoming Parts to Aligned Subassembly

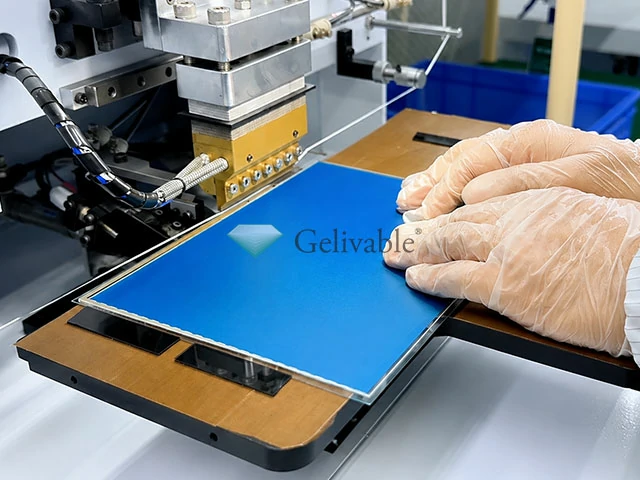

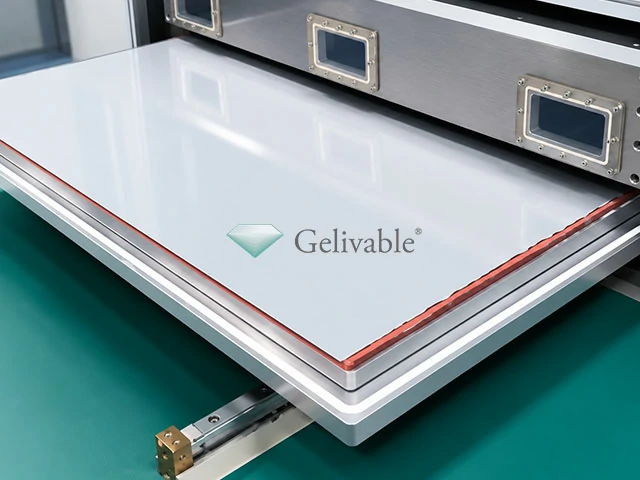

Assembly starts with verification of the glass and mating components against the approved drawing. Surfaces are cleaned as required, adhesive or tape is prepared, and the parts are aligned using defined edges, fixtures or locating features.
Pressure, fixture time and handling method depend on the selected adhesive system. Brand-specific tapes and adhesives should be processed according to their technical guidance.

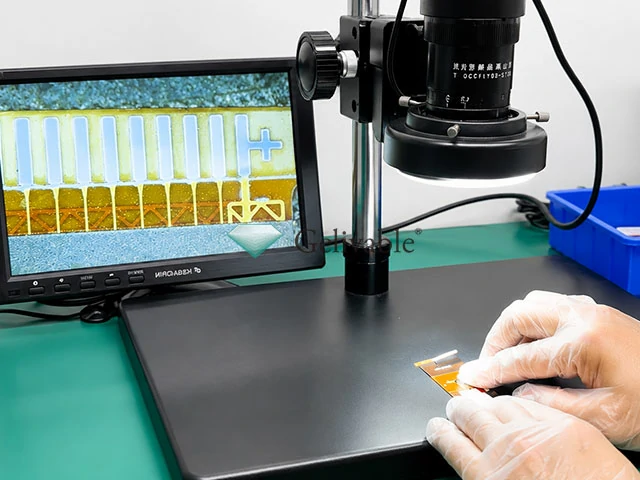

- Verify glass and mating components before assembly
- Clean the bonding and visible surfaces

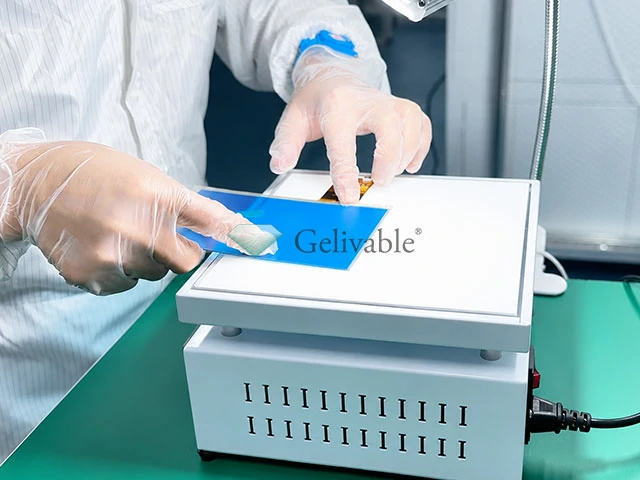

- Apply tape or approved adhesive in the specified area
- Align the parts to drawing datums

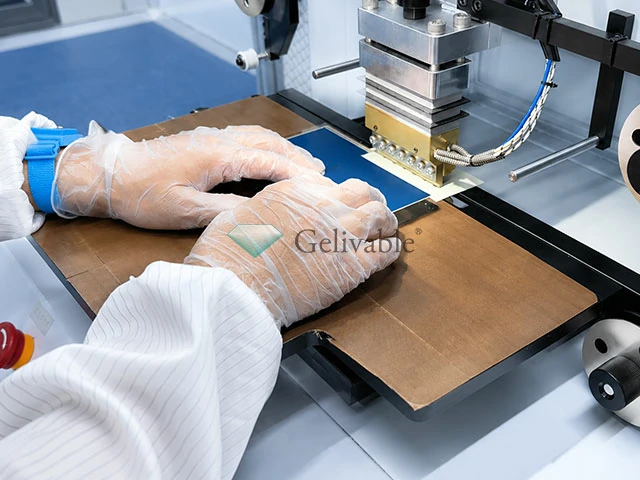

- Apply the required pressure or fixturing
- Protect the finished subassembly before final inspection
Final Assembly Inspection
What Is Checked on the Finished Glass Assembly

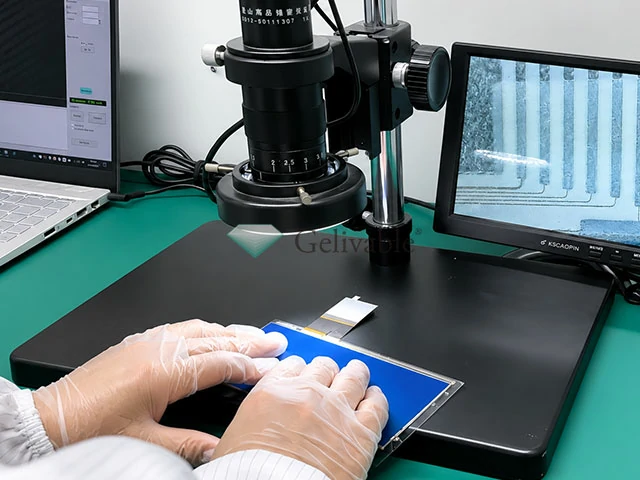

Finished assembly quality is evaluated at component level, not only at the glass level. Alignment, visible cleanliness, edge relationship, adhesive position and any specified functional checks are reviewed together.

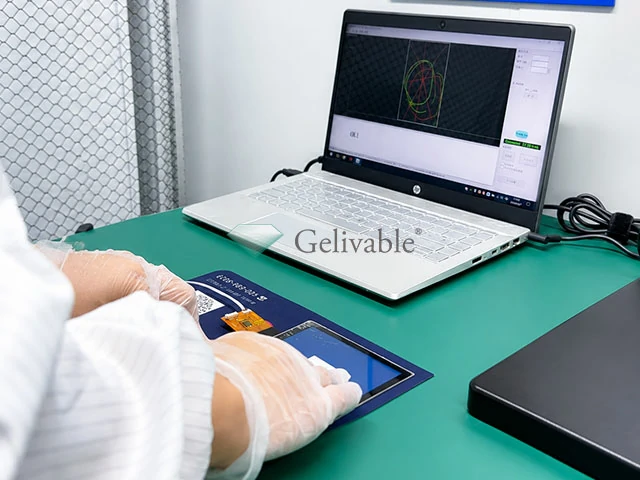

Where a display or touch sensor is part of the supplied assembly, the required functional test should be agreed in advance because test scope depends on the customer's module, electronics and acceptance criteria.
- Glass-to-component alignment
- Visible-area cleanliness and cosmetic condition
- Adhesive position and edge condition
- Assembly gap and part fit
- Specified touch, display or mechanical verification where applicable
Application Areas
Applications for Custom Glass Assembly
Glass assembly support is relevant to products where the cover glass must arrive as a ready-to-install or partially integrated component.
Touch Panel Assemblies
Cover glass can be aligned and bonded with touch components when the sensor structure, adhesive stack and finished touch performance are defined.
Display Module Assemblies
Display cover glass can be integrated with a display or supporting frame when the visible area, gap and bonding method are clearly specified.
Industrial HMI
HMI front glass can be supplied with tape, touch components or mounting structures assembled for easier installation into industrial equipment.
Smart Device Interfaces
Smart home and specialty-device interfaces can combine printed, coated and machined glass with the required mounting or touch components.
Quick Quote
Request a Custom Glass Assembly Quote
Send the glass drawing, assembly drawing, BOM, mating-part information, quantity, bonding method, adhesive part number if specified, alignment requirements and any required functional or cosmetic inspection criteria.
Why Choose GelivableGlass
Glass Fabrication Connected to Final Assembly
GelivableGlass reviews glass processing, adhesive design and component integration around the final product stack, helping reduce mismatches between the glass drawing and the actual assembly.
Drawing-Based Alignment
Defined datums, visible areas and bonding zones help control repeatable glass-to-component position.
Integrated Process Sequence
Machining, printing, coatings, tape, protective film and assembly can be planned around the same final-component requirements.
Subassembly-Level Inspection
The finished unit can be checked for alignment, cleanliness, adhesive placement and other agreed assembly criteria before shipment.
Technical FAQ
Glass Assembly FAQ
What types of glass assembly can GelivableGlass support?
GelivableGlass current site describes assembly and adhesive bonding support for cover glass integration with display modules, touch panels, frames and equipment components. Final scope depends on the project drawing and supplied parts.
Can GelivableGlass apply double-sided tape before assembly?
Yes. Double-sided adhesive can be applied as part of the glass fabrication and assembly sequence when the tape type, shape, thickness and bonding area are defined.
Can cover glass be assembled with a capacitive touch sensor?
Yes, it can be evaluated, but cover-glass thickness, adhesive construction, sensor design and controller settings all influence the finished touch system. Final touch performance should be validated with the complete module.
Is glass assembly the same as optical bonding?
No. Assembly is a broader component-integration process. Optical bonding uses optically clear adhesive between optical layers and should be specified separately when the project requires that process.
How is component alignment controlled?
Alignment can reference glass edges, holes, printed features, display windows or fixture datums defined on the assembly drawing. The required positional tolerance should be agreed before production.
Can customer-supplied displays or touch panels be used?
They may be used when the incoming-part specification, quantity, handling requirements and acceptance criteria are agreed before pilot production.
What is checked after assembly?
Typical checks include alignment, visible-area cleanliness, adhesive position, assembly gap, part fit and any project-specific touch, display or mechanical verification.
What should I send for an assembly quote?
Send the glass drawing, assembly drawing, BOM, mating-part information, bonding method, adhesive part number, quantity, alignment criteria, visible-area requirements and required functional tests.
